Our Partners
For over years, SODIMAS has been perfecting elevator systems that fuse proven mechanical engineering with state-of-the-art electrical intelligence. NEXRISE is Ghana's authorised installation partner.
Proven mechanics with advanced electrical technology
Innovation
and Tradition
Une Mécanique éprouvée doté d'une Technologie électrique avancée
Proven Mechanical
Simplicity
Fundamentally, the HYBRID elevator is a robust and reliable mechanical structure, derived from decades of experience and innovation. This mechanical simplicity guarantees not only easy maintenance, but also exceptional durability.
Smooth & Quiet Travel
Advanced motion control innovations ensure every ride is shake-free and pleasant.
Space & Ergonomics
Spacious ergonomic cabin with high-quality materials and carefully crafted finishes.
Intuitive User Interface
Easy-to-use control panel with customisable options adapted to each user's needs.
Exceptional Durability
Robust structure from decades of elevator expertise — easy to maintain, built to last.
Innovation
and Tradition
Une Mécanique éprouvée doté d'une Technologie électrique avancée

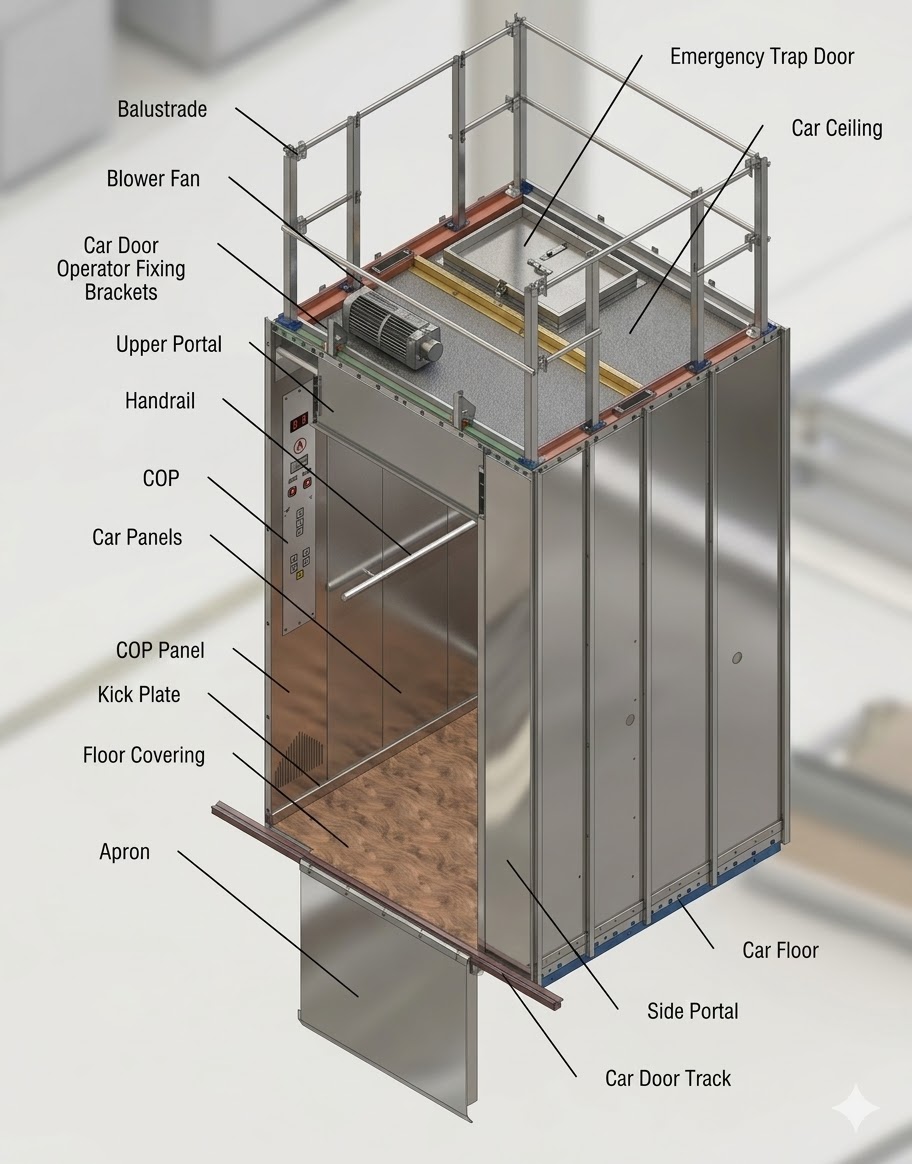

Car Door
Brushed stainless steel — Slycma SD20 Type automatic door mechanism
Car Panels
Inox brossé base · FT633 Laminate option · multiple colour finishes available
Ceiling, Lighting & Fan
White powder coat ceiling · Round LED spotlight · Integrated ceiling fan ventilation
Car Operating Panel
Half column 220×1060×35 · 4.3" colour display · 7.5" insert · Cyntra buttons (black brushed stainless)
Floor, Handrail & Skirting
PVC floor · Integrated stainless steel handrail tube & tip · Stainless skirting board
Mirror
Full-width half-height · 1 access side C / 2 accesses opposite operating panel

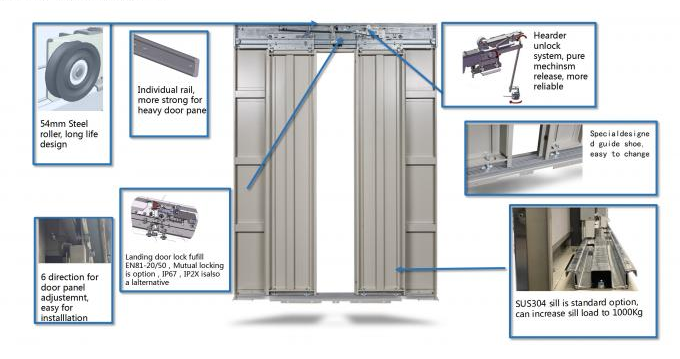

Landing
Options
Engineered landing doors and call panels combining aesthetics with robust certified safety.
Blackpad surface-mounted 80×185×12 · Black & chrome · Slyma button brushed black stainless · DOT white display
Eco-Design
& Performance
Our design optimises the elevator's energy consumption, reducing carbon footprint and operating costs. Innovative technology allows optimal resource management — minimising waste and maximising energy efficiency.

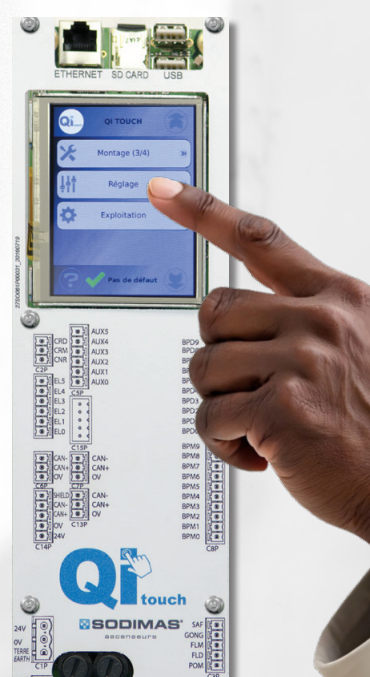

Class
QI Touch
Controller
A concentration of technology based on rapid acquisition and processing, using a powerful multi-tasking operating system — delivering efficient real-time movement control and excellent user comfort.
Technical Specifications
All values per the SODIMAS HYBRID brochure. For custom loads, speeds or non-standard dimensions contact NEXRISE.
| Dimension | 450 kg /6 pax | 630 kg /8 pax | 800 kg /10 pax | 1000 kg /13 pax | ||||
|---|---|---|---|---|---|---|---|---|
| MRL | MRA | MRL | MRA | MRL | MRA | MRL | MRA | |
| Shaft Width (A) | 1500 | 1600 | 1900 | 2100 | ||||
| Shaft Depth (B) | 1500 | 1700 | 1700 | 1800 | ||||
| Cabin Width (C) | 1000 | 1100 | 1350 | 1400 | ||||
| Cabin Depth (D) | 1200 | 1400 | 1400 | 1600 | ||||
| Cabin Height (E) | 2200 | |||||||
| Door Height (F) | 2000 | |||||||
| Door Height (G) | 700 / 800 / 900 | |||||||
| Headroom Min (H) | 3400 | 3600 | 3250 | 3450 | 3400 | 3600 | 3500 | 3700 |
| Pit Height Min (I) | 1000 | 1050 | 1000 | 1050 | 1000 | 1050 | 1000 | 1050 |
| Landing to landing (J) | 3500 -> 11000 | |||||||
| Maximum travel | 80M | |||||||
For custom loads, speeds or dimensions — contact NEXRISE for a tailored consultation.

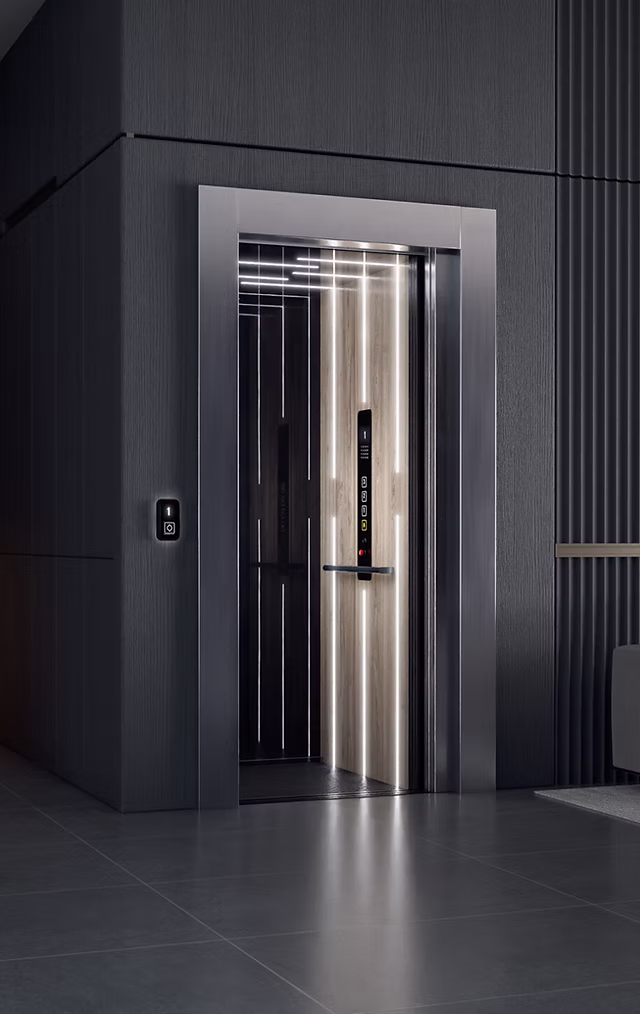

Perfect
Integration
The HYBRID solution fits directly into your concrete shafts — residential, commercial, hotel, or industrial. Advanced flexible design means our elevators meet the specific requirements of each environment.
MRL — Machine Roomless
Machine at top of shaft — no separate machine room required
MRA — Machine Room Adjacent
Dedicated machine room alongside shaft — full maintenance access
Your HYBRID, Your Dimensions, Your Requirements!
Fully modular and configurable according to your specific needs. Whether for special dimensions or tailor-made load capacities.

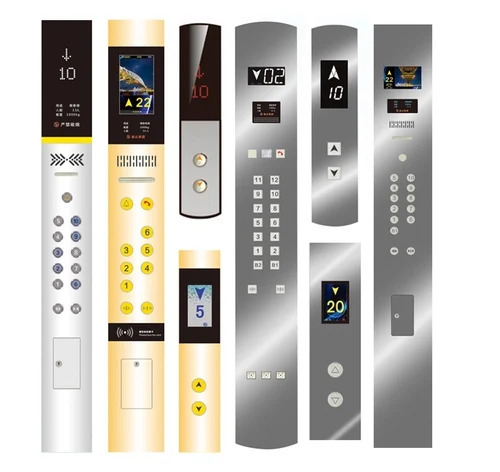

Operating Panel Range
From the standard half-column with 4.3" colour display to the full Bluestyle range — available in silver, black, and gold. Surface-mounted finish only. Full-height column also available as option.
WARRANTY
Bring World-Class Elevator
Technology to Ghana
NEXRISE is Ghana's authorised installation partner for SODIMAS elevators. Our certified engineers handle everything from site assessment and shaft preparation through to installation, commissioning, and final handover.
